Used To Connect Pipelines API Coupling With Threads On Both Ends

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

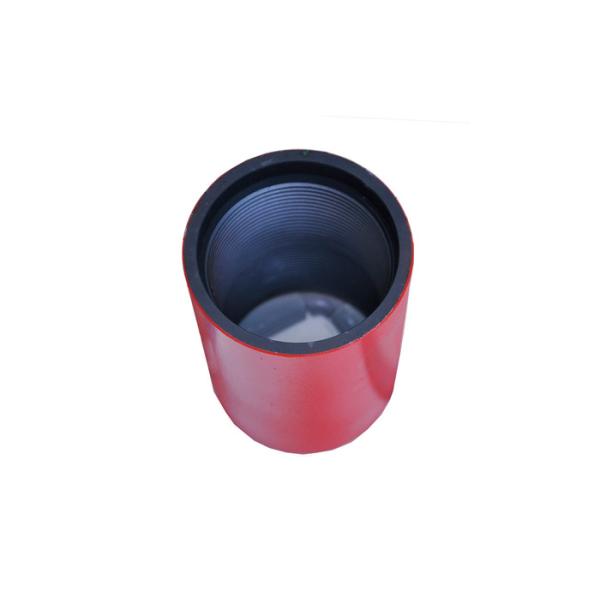

Used To Connect Pipelines API Coupling With Threads On Both Ends

Used to connect pipelines API Coupling with threads on both ends

As we know steel pipe coupling is a short pipe or tube that with threads on both ends, used to connect pipelines. So It is a kind of pipe fittings that with threaded connection, the advantage is easy for pipeline maintenance or to replace the broken pipe.
API Coupling refers to the steel couplings that used in connecting casing pipe and tubing. Also known by OCTG coupling, it is usually manufactured in seamless type, material grade same with the pipe body (API 5CT K55/J55, N80, L80, P110 etc), same PSL or providing higher grades than requested. Same heat treatment also applicable, except there is an special requirements.

Tubing coupling

Features
The oil tubing coupling can solve the problem of fatigue fracture in the existing coupling due to stress concentration. Oil tubing end is connected to the inside wall of the coupling in a tapered thread. The coupling body end and oil tubing are connected with same thread pitch flat thread. The coupling is not easy to produce fatigue fracture, and has good connection effect. It can prevent the accident of oil well pipe string break effectively.

Tubing Pipe

Outside Diameter(In)

Tubing Pipe Outside Diameter(mm)

Coupling Outside Diameter(mm)

Minimum Length(mm)

Diameter Of Recess(mm)

Width of Bearing

Face Regular (mm)

Max Bearing Face Diameter (mm)

Mass(Kg)

NUE

EUE

NUE

EUE

NUE

EUE

NUE

EUE

NUE

EUE

NUE

EUE

Regular

Special

Clearance

Regular with special bevel

Special

Clearance

Regular

Special

Clearance

1.9

48.26

55.88

63.50

95.25

98.42

49.86

54.76

1.59

3.18

52.07

58.34

0.56

0.84

2 3/8

60.32

73.02

77.80

73.91

107.95

123.82

61.93

67.46

4.76

3.97

66.68

71.83

69.90

1.28

1.55

1.07

2 7/8

73.02

88.90

93.17

87.88

130.18

133.35

74.63

80.16

4.76

5.56

80.98

85.88

83.24

2.34

2.40

1.55

3 1/2

88.90

107.95

114.30

106.17

142.88

146.05

90.50

96.85

4.76

6.35

98.42

104.78

100.71

3.71

4.10

2.38

101.60

120.65

127.00

146.05

152.40

103.20

109.55

4.76

6.35

111.12

117.48

4.35

4.82

4 1/2

114.30

132.08

141.30

155.58

158.75

115.90

122.25

4.76

6.35

123.19

130.96

4.89

6.05

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
