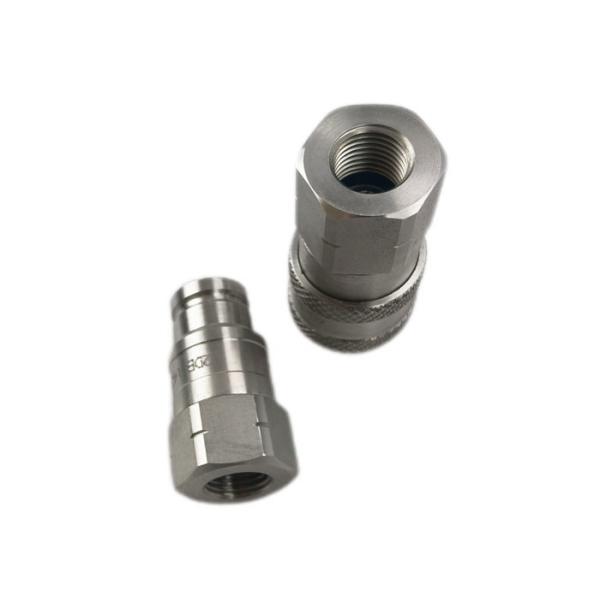

316 stainless steel Flat Face Coupling

CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.

Applications

• Process/Fluid Transfer • Cooling • Corrosive Environments • Chemicals/ Petrochemicals • Pharmaceuticals • Food Processing • Electrical

Standard Materials

• zinc-plated steel
• Seals: NBR, Viton, EPDM

Features

1. Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU
2. Safety sleeve lock prevents accidental disconnections
3. Push to connect with double shut-off valving
4. Capable of working under high temperature applications
5. Shock-resistant color coding ring option available in 1/2” size
6. Serviceable design allows for easy cleaning and seal replacement
7. Designed with higher flow capacity and resistance to aggressive fluids and corrosion
8. Standard body material: 316/316L Stainless steel
9. Standard seal material: FKM, EPDM
10. Compatible with Hansen DB Series.

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-S2M-6FN-B	1/4-18	1.98	1.02	0.88
1/4"	CB-S2M-6FG-B	1/4-19	1.98	1.02	0.88
1/2"	CB-S4M-6FN-B	1/2-14	2.52	1.59	1.38
1/2"	CB-S4M-6FG-B	1/2-14	2.52	1.59	1.38
3/4"	CB-S6M-6FN-B	3/4-14	3.71	2.00	1.50
3/4"	CB-S6M-6FG-B	3/4-14	3.71	2.00	1.50
1"	CB-S8M-6FN-B	1-11	3.52	2.25	1.81
1"	CB-S8M-6FG-B	1-11	3.52	2.25	1.81

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-P2M-6FN-B	1/4-18	1.98	1.02	0.88
1/4"	CB-P2M-6FG-B	1/4-19	1.98	1.02	0.88
1/2"	CB-S4M-6FN-B	1/2-14	2.52	1.59	1.38
1/2"	CB-S4M-6FG-B	1/2-14	2.52	1.59	1.38
3/4"	CB-S6M-6FN-B	3/4-14	3.71	2.00	1.50
3/4"	CB-S6M-6FG-B	3/4-14	3.71	2.00	1.50
1"	CB-S8M-6FN-B	1-11	3.52	2.25	1.81
1"	CB-S8M-6FG-B	1-11	3.52	2.25	1.81
